D07 , SIZE 16 HYDRAULIC SUBPLATE

/D07 Hydraulic Subplate, Side Ported SP16S
SP16S Subplate PDF

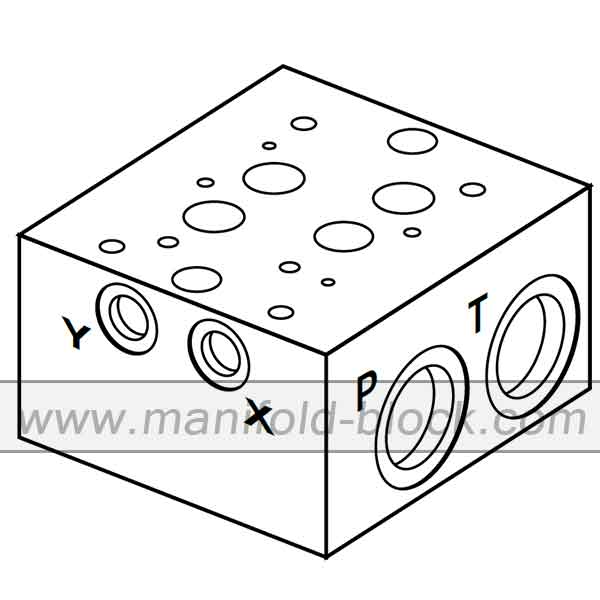

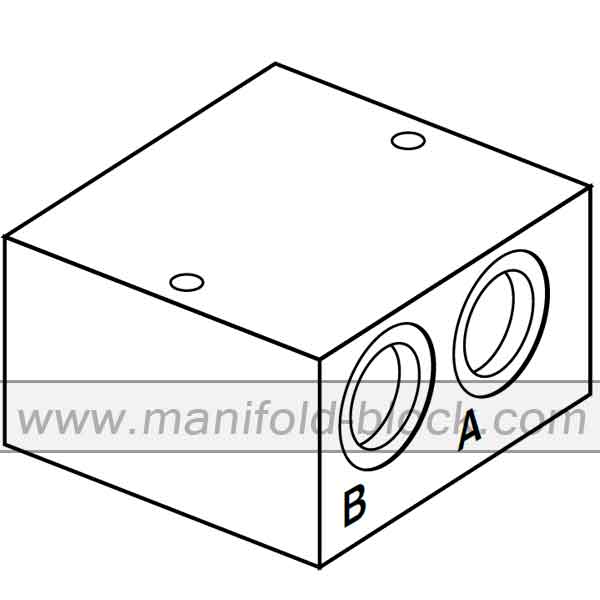

D07 Hydraulic Subplate: Side Ported SP16S Series For Size16 Valves

Feature:
* 2 Types of flow rate for optional, with different size of connection threads
* Max. Pressure: Aluminum up to 207bar/3000psi, Steel up to 350bar/500psi
* Threaded Connection: SAE ; NPT ;  BSPP for selection

D07 hydraulic subplate,  SP16S series is side-ported hydraulic valve subplate is designed for the high flow rate of hydraulic system, this hydraulic subplate is used for 16mm of hydraulic spool valve from panel connection to threaded pipe connection. The valve pattern is the standard mounting surface for Rexroth, Yuken, Parker, Vickers valve, which is interchangeable and easy replacement. The connected threaded ports can be customized for assembling the hydraulic hosts or connectors.
Hydraulic Subplate Surface Treatment:
Steel= Black galvanized or zinc plated
Alloy Aluminum= Aluminum oxidation
Subplate For Valve Adopted Pattern:
ISO no.: 4401-07-06 series
Rexroth: WE16, WEH16 series
Bosch: 081WV16P1 series
Denison: A-3D02 series
Nachi: A-3D03 series
Vickers: DG5S4-04, (K)DG3V-7, (K)DG5V-7 series

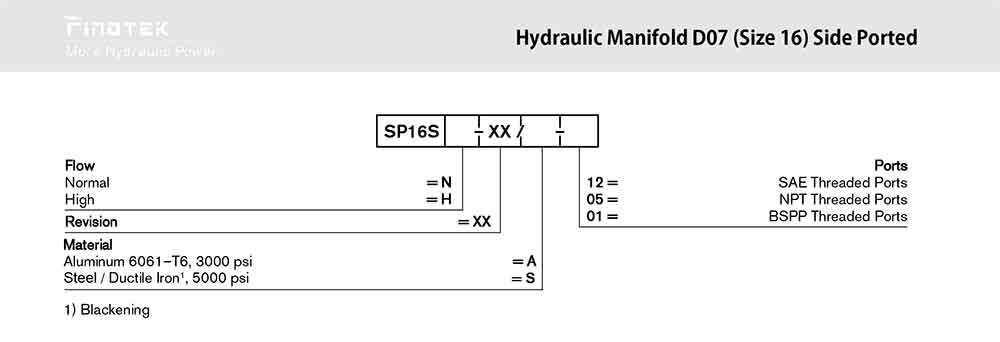

Hydraulic Plate SP16S Series Ordering Code:

Hydraulic Subplate SP16S Ordering Code

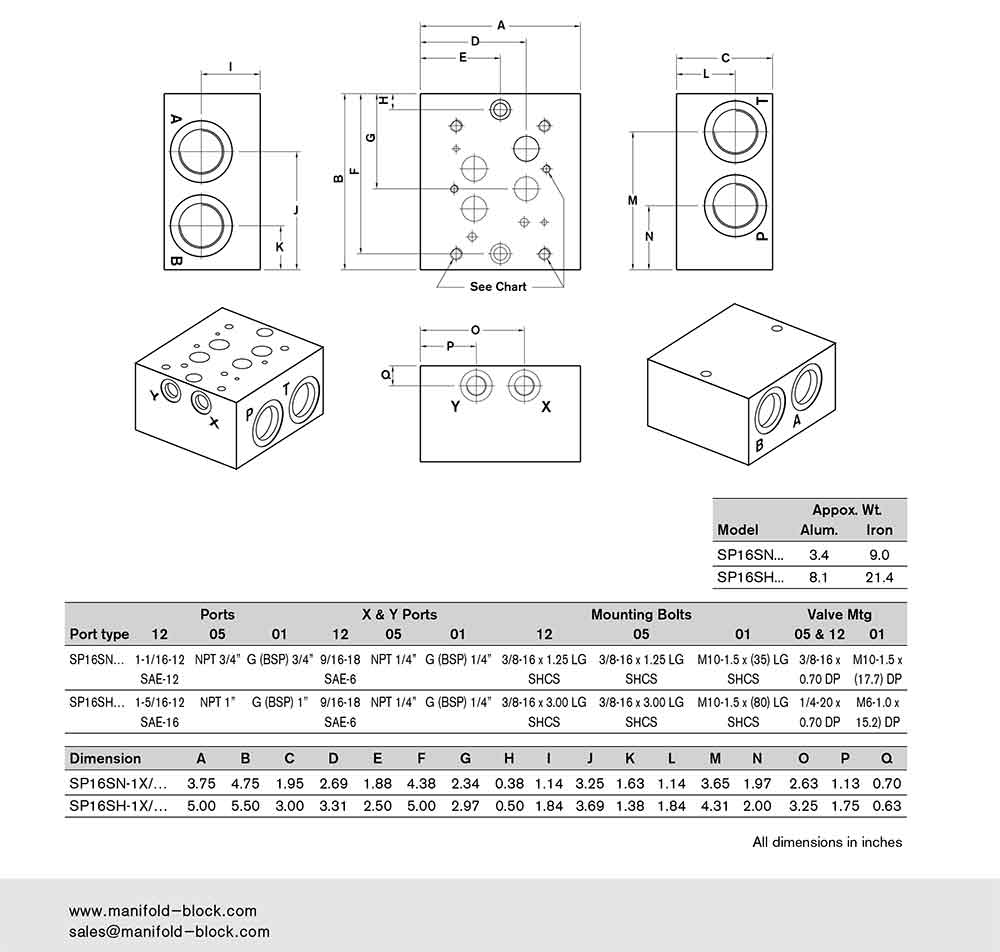

Hydraulic Plate SP16S Series Dimensions:

Hydraulic Subplate SP16S Dimensions
