D03 , SIZE 6 HYDRAULIC SUBPLATE

/D03 Hydraulic Subplate, Bottom Ported SP6S
SP6S Subplate PDF

D03 Hydraulic Subplate: Bottom Ported SP6S Series For Size 6 Valves

Feature:
* 3 Types of flow rate for optional, with different size of connection threads
* Max. Pressure: Aluminum up to 207bar/3000psi, Steel up to 350bar/500psi
* Threaded Connection: SAE ; NPT ;  BSPP for selection

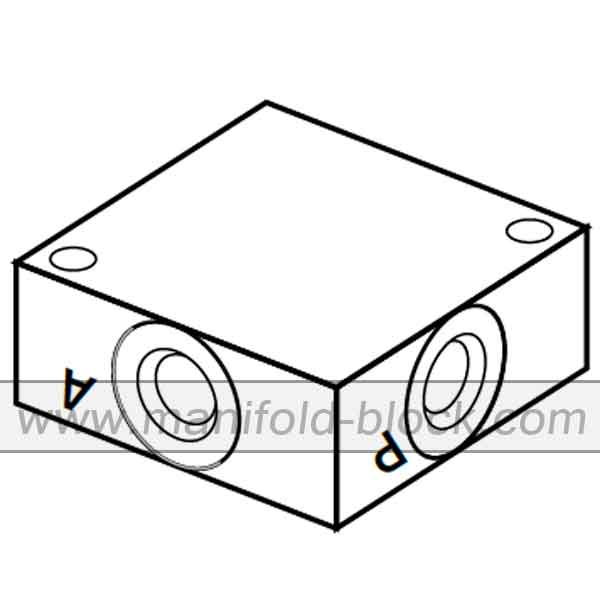

SP6S Side ported hydraulic subplate is for standard of ISO4401 mounting hydraulic D03 valves with high flow, all the raw materials are selected, qualified suppliers with quality certification.
This valve pattern on the SP6S side ported hydraulic subplate meets all the industrial standard modular valves assembly which is easy for interchangeable and replacement.All our items are black galvanization or zinc plated for protection from rust or dust environment.
Hydraulic Subplate Surface Treatment:
Steel= Black galvanized or zinc plated
Alloy Aluminum= Aluminum oxidation
Subplate For Valve Adopted Pattern:
ISO no.: 4401-03-02
Rexroth: WE6 Series
Bosch: FD4-**HS-*01
Continental: V*D03M, E*03M,V*5M
Denison: A-3D01
Nachi:SA-G01, SS-G01,DMA-G0
Parker: D1VW; Vickers/ (K)DG4V-3

Hydraulic Plate SP6S Series Ordering Code:

Hydraulic Subplate SP6S Ordering Code

Hydraulic Plate SP6S Series Dimensions:

Hydraulic Subplate SP6S Dimensions
