D05 , SIZE 10 HYDRAULIC MANIFOLD

/D05 Hydraulic Manifold, Parallel Circuit Normal Flow BM10PN

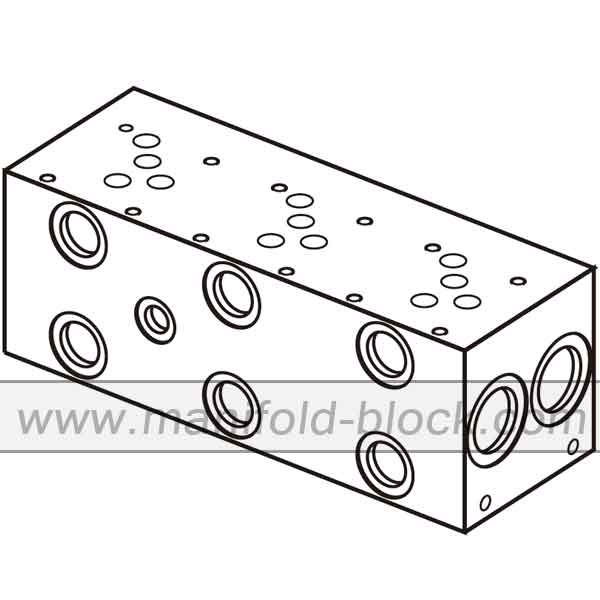

Hydraulic Manifold D05, Parallel Circuit Normal Flow, BM10PN Series
BM10PN Manifold PDF

D05 Hydraulic Manifold: Parallel Circuit Normal Flow, BM10PN Series

Feature:
* Available Materials: Aluminum alloy nos. AL6061-T6 or Steel 45# high strength carbon steel
* Steel black galvanized or zinc plated,  Aluminum oxidation
* Threaded Connection: SAE, NPT or BSPP threaded for optional

D05 Hydraulic manifold, BM10PN series are the standard parallel circuit design with normal flow rate hydraulic bar manifold. The items are for mounting of size 10 valve, valve pattern is manufacturing complied with ISO 4401-05-04-0-05 and NFPA T3.5.1 R2-2002 D05 standard, which will allow all brand of standard valves are interchangeable. We are checking all the raw materials before production, the manifold blocks will extend the lifetime of preserving agent at indoor storage.
Manifold For Valve Adopted Pattern:
ISO no.: 4401-05-04 series
Rexroth:WE10 series
Bosch: FD4-**HS-*02 series
Continental: ED05M V*12M series
Denison: A-3D02 series
Nachi: SS-G03, DMA-G03 series
Parker: D3W
Vickers: DG4S*-01, DG4V-4, (K)DG4V-5 series

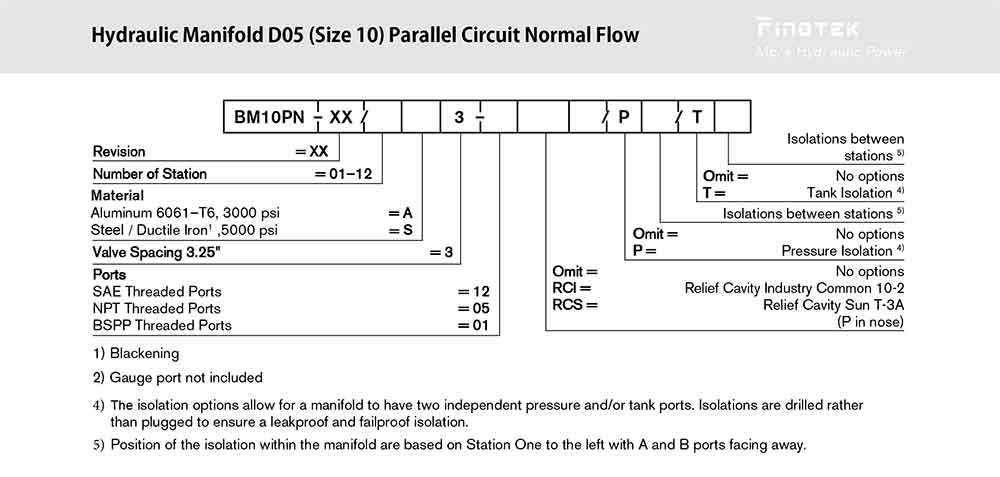

Hydraulic Manifold BM10PN Series Ordering Code:

D03 Hydraulic Manifold, BM10PN Series Ordering Code

Hydraulic Manifold BM10PN Series Dimensions:

D03 Hydraulic Manifold, BM10PN Series Dimensions
