D03 , SIZE 6 HYDRAULIC MANIFOLD

/D03 Hydraulic Manifold, Parallel Circuit Normal Flow BM6PN

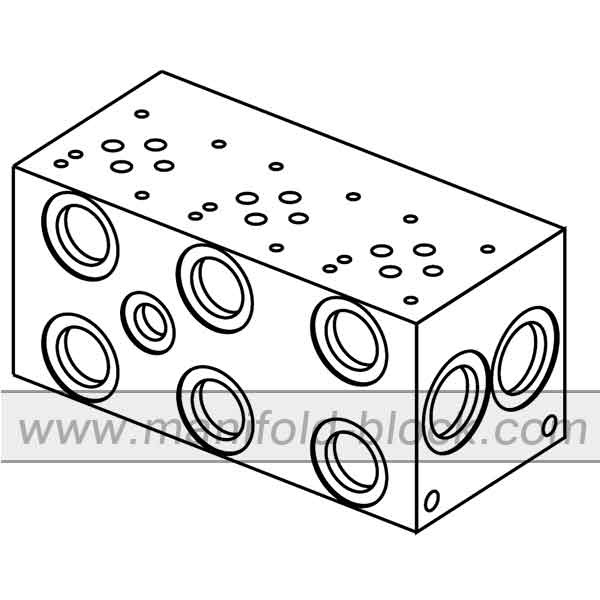

Hydraulic Manifold D03, Parallel Circuit Normal Flow, BM6PN Series
BM6PN Manifold PDF

D03 Hydraulic Manifold: Parallel Circuit Normal Flow, BM6PN Series

Feature:
* Available Materials: Aluminum alloy nos. AL6061-T6 or carbon steel 45#
* Max. Pressure: Aluminum up to 207bar/3000psi, Steel up to 350bar/500psi
* Threaded Connection: SAE-10 or SAE-8 ; 1/2NPT or 3/8NPT ;  1/2BSPP ; 3/8BSPP

BM6PN series are D03 hydraulic bar manifolds with parallel circuit normal flow design for hydraulic valve installation, the valve pattern is complied with many valve brand, like Rexroth valves, Bosh valves, Continental valves, Denison valves, Nachi Valves, Parker valves, Vickers valves extra. The BM6PN can be products in aluminum or steel materials as per different pressure in hydraulic system.
The custom bar manifold with special connection threaded is available to us, please inform us the design of the drawing or samples.
Manifold Block Surface Treatment:
Steel= Black galvanized or zinc plated
Alloy Aluminum= Aluminum oxidation
Manifold For Valve Adopted Pattern:
ISO no.: 4401-03-02
Rexroth: WE
Bosch: FD4-**HS-*01
Continental: V*D03M, E*03M,V*5M
Denison: A-3D01
Nachi:SA-G01, SS-G01,DMA-G0
Parker: D1VW; Vickers/ (K)DG4V-3

Hydraulic Manifold BM6PN Series Ordering Code:

D03 Hydraulic Manifold, BM6PN Ordering Code

Hydraulic Manifold BM6PN Series Dimensions:

D03 Hydraulic Manifold, BM6PN Series Dimensions
